class: center, middle, inverse, title-slide # STAT3622 Data Visualization (Lecture 10) ## FinTech Case Studies with DataViz Skills ###
Dr. Aijun Zhang
The University of Hong Kong ### 14 April 2020 --- # What's covered in this lecture? <img style="float: right; width: 400px; padding:50px 0 0 0;" src="AppliedAIFinTech.jpg"> - Applied AI in Banking and Finance - Case 1: Financial Index Analysis - Review of AIEQ Case - Hang Seng Index - Case 2: Financial Anomoly Detection - Outlier Peeling Algorithm - Radial Chart Visualization --- class: center, middle # Applied AI in Banking and Finance --- # Applied AI in FinTech and Financial Services There are multiple Financial Technology (FinTech) and Financial Service areas where Artificial Intelligence (AI) and Machine Learning (ML) can be applied, including - Credit risk management (Credit scoring, Loan acquisition, Default forecasting, P2P lending) - Investment analysis (Trading strategy, Portfolio optimization, Money management) - Cryptocurrency (BitCoin, Crypto index) - Fraud detection and anti-money laundering - Customer service (Automated customer support via chatbots, Customer segmentatoin) --- # Two FinTech Case Studies In this lecture, we discuss two FinTech case studies with the equipped DataViz skills: - Case 1: Financial Index Analysis - Review of AIEQ Case - Hang Seng Index - Case 2: Finanial Anomoly Detection - Outlier Peeling Algorithm - Radial Chart Visualization --- class: center, middle # Case 1: Financial Index Analysis --- # Investment Stratgies - Active investing - The market is not perfectly efficient - Aims to beat the market and take advantage of short-term price fluctuations - Passive investing - The market is efficient in the long run - Buy-and-hold philosophy - Index tracking strategy, e.g. ETF --- # Review of AIEQ Case

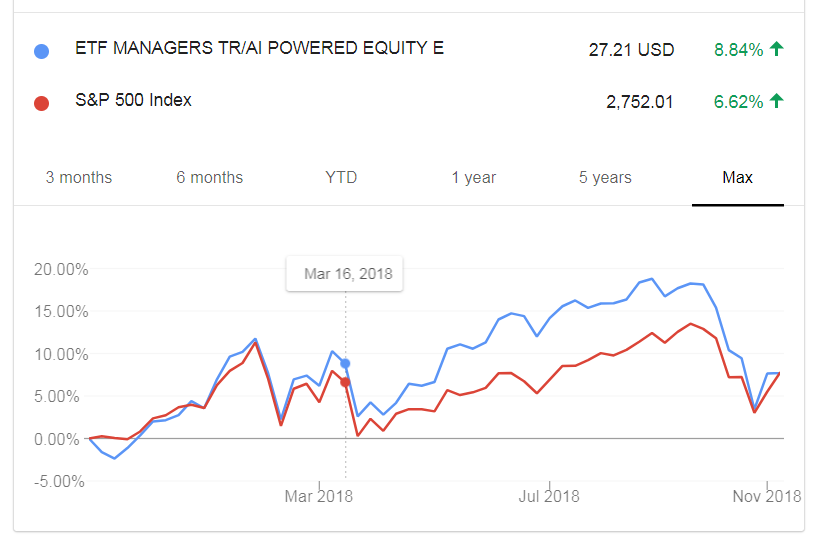

- Click [here](http://www.statsoft.org/wp-content/uploads/2017/09/Lecture12_AIEQ.html) for the reviewed case study, including AIEQ Performance, Holdings Analysis and Portfolio Analysis --- # AIEQ Performance To Date <img src="Performance.png" width="700px" style="display: block; margin: auto;" /> --- # New Case Study: Hang Seng Index - Query data from Yahoo!Finance - Interactive time series display by **R:dygraphs** ([Online Tutorial](https://rstudio.github.io/dygraphs/index.html)) ```r library(quantmod) library(xts) library(dygraphs) library(htmltools) date0 = "2000-01-01" dummy = getSymbols("^HSI", src="yahoo", from = date0) div(dygraph(HSI$HSI.Close, main = "Hang Seng Index since 2000") %>% dyRangeSelector(dateWindow = c("2010-01-01", "2018-12-31")) %>% dyOptions(colors = c("red")), align="center") ``` ---

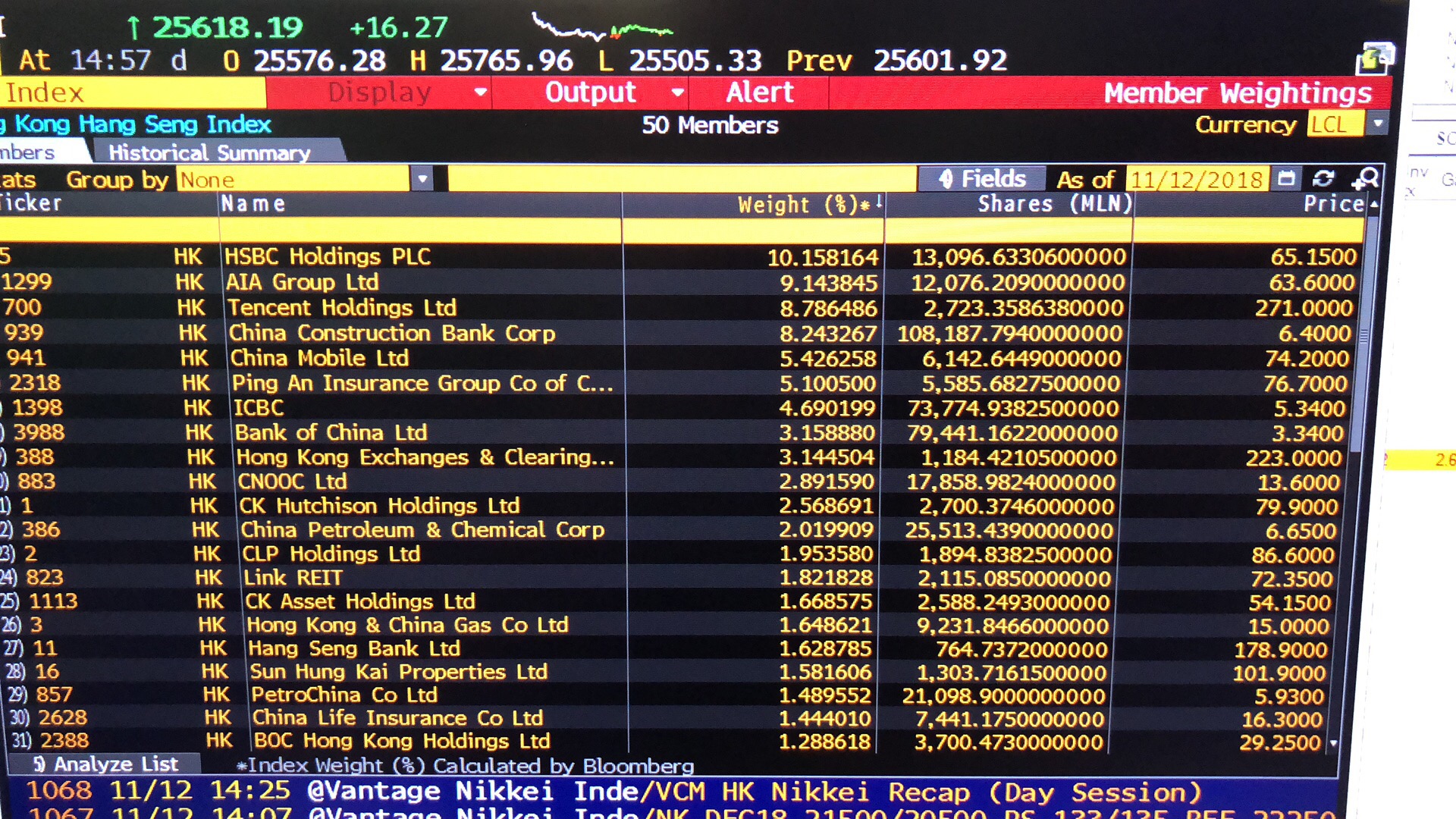

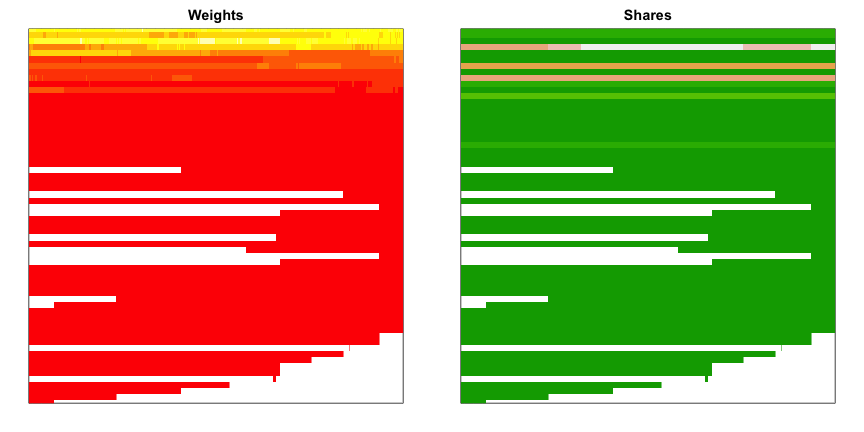

--- # Hang Seng Index Constituents - HSI historical data can be obtained from Bloomberg Terminal <img src="Bloomberg.jpeg" width="720px" style="display: block; margin: auto;" /> - We collected daily weights of HSI constituents since 2016-01-01 --- # Hang Seng Index Constituents - X.Shares <- X.Weight \* HSI.Close \* HSI.Divisor / X.Close - Data Preprocessing to convert data into space-time format ```r DataX = read.csv("DataHSI.csv") DataX$Date2 = as.factor(DataX$Date) tmp = DataX[!duplicated(DataX$Ticker, fromLast = T),] idx = order(tmp$Date, tmp$Weight, decreasing = T) ListTicker=tmp$Ticker[idx] n = length(ListTicker) ListDate = as.character(unique(DataX$Date)) MatWeight <- MatShares <- matrix(NA, length(ListDate), n) for (j in 1:n){ TmpX = DataX[DataX$Ticker==ListTicker[j], c("Date2", "Weight", "Shares")] MatWeight[as.numeric(TmpX$Date2),j] = TmpX$Weight MatShares[as.numeric(TmpX$Date2),j] = TmpX$Shares } colnames(MatWeight) <- colnames(MatShares) <- ListTicker MatWeight = xts(MatWeight, order.by=as.Date(ListDate, "%Y%m%d")) MatShares = xts(MatShares, order.by=as.Date(ListDate, "%Y%m%d")) ``` --- # HSI Constituent Weights and Shares ```r par(mfrow=c(1,2), mar=rep(2,4)) image(as.matrix(MatWeight), ylim=c(1,0), col = heat.colors(10), xaxt='n', yaxt='n', main="Weights") image(as.matrix(MatShares), ylim=c(1,0), col = terrain.colors(10), xaxt='n', yaxt='n', main="Shares") ``` <img src="index_files/figure-html/unnamed-chunk-8-1.png" style="display: block; margin: auto;" /> --- ```r div(dygraph(MatWeight, main = "HSI Constituent Weights",height=450) %>% dyRangeSelector(dateWindow = c("2016-01-01", "2018-12-31")) %>% dyLegend(show = "never"), align="center") ```
--- ```r TmpX = MatShares[,1:4]; TmpX = TmpX/rep(1, dim(TmpX)[1])%*%t(colMeans(TmpX, na.rm=T)) div(dygraph(TmpX, main = "HSI Constituent Shares", ylab="Normalized shares",height=450) %>% dyRangeSelector(dateWindow = c("2016-01-01", "2018-12-31")) %>% dyOptions(colors = c("red", "blue", "green", "cyan"), strokeWidth=2), align="center") ```
--- # HSI Constituent Rebalancing ```r TmpX = MatShares[,"700.HK"] div(dygraph(TmpX, main = "HSI Constituent Shares: 700.HK", height=360) %>% dyRangeSelector(dateWindow = c("2016-01-01", "2018-12-31")) %>% dyOptions(colors = "green"), align="center") ```
--- class: center, middle # Question of interest: ### The AIEQ that tracks S&P500 is based on a semi-passive strategy, can we find its equivalent for Hang Seng index? --- class: center, middle # Case Study 2: Financial Anomoly Detection Link to [Black September 2008](../Lecture10_BlackSep2008/index.html) --- class: center, middle # Thank you! Q&A or Email ajzhang@umich.edu。
